Evaporative Cooler Parts & Components

Inline check valve to prevent water backflow in supply lines.

Size

1/2"

Cracking Pressure

0.5 PSI

Material

PP Body

Universal pipe coupling connectors for water system assembly.

Type

Straight Coupling

Size

12mm

Material

PP

Replacement water distribution tube for cooler plumbing.

Diameter

10mm OD

Material

Flexible PVC

Wall Thickness

1.5mm

Replacement drain plug for water tank drainage outlet.

Thread

1/2" NPT

Material

PP + Rubber Seal

Manual ball drain valve for water tank drainage in evaporative coolers.

Size

1/2" NPT

Material

PVC / Brass

Type

Ball Valve

90° elbow and T-connectors for water pipe routing.

Types

Elbow + Tee

Sizes

10mm / 12mm

Material

PP

Replaceable water filter cartridge for inline filtration systems.

Filtration

50 micron

Material

PP Melt-blown

Length

250mm

Mechanical float valve for automatic water level control in cooler water tanks.

Connection

1/4" Thread

Material

Brass / Plastic

Type

Mechanical Float

Flexible water hose for evaporative cooler plumbing connections.

Diameter

12mm ID

Material

PVC Reinforced

Max Pressure

3 bar

Standard spray nozzle for water distribution over cooling pads.

Spray Angle

120°

Flow Rate

2 L/min

Material

ABS / PP

Overflow protection parts to prevent water tank overflow.

Type

Float + Overflow Pipe

Material

ABS / PP

Replacement pump housing volute for water pump assembly.

Outlet

1/2" Thread

Material

PP / ABS

Replacement 6-blade impeller for water pump rotor restoration.

Blades

6

Material

Engineering Plastic

Shaft Bore

6mm

Replacement drive motor for water pump assembly.

Voltage

110V/60Hz

Power

15W

Mount

4-Bolt Flange

Replacement pump seal kit for water pump maintenance. Compatible with standard pump shaft sizes.

Shaft Diameter

6mm / 8mm

Material

Ceramic / Carbon

Type

Mechanical Seal

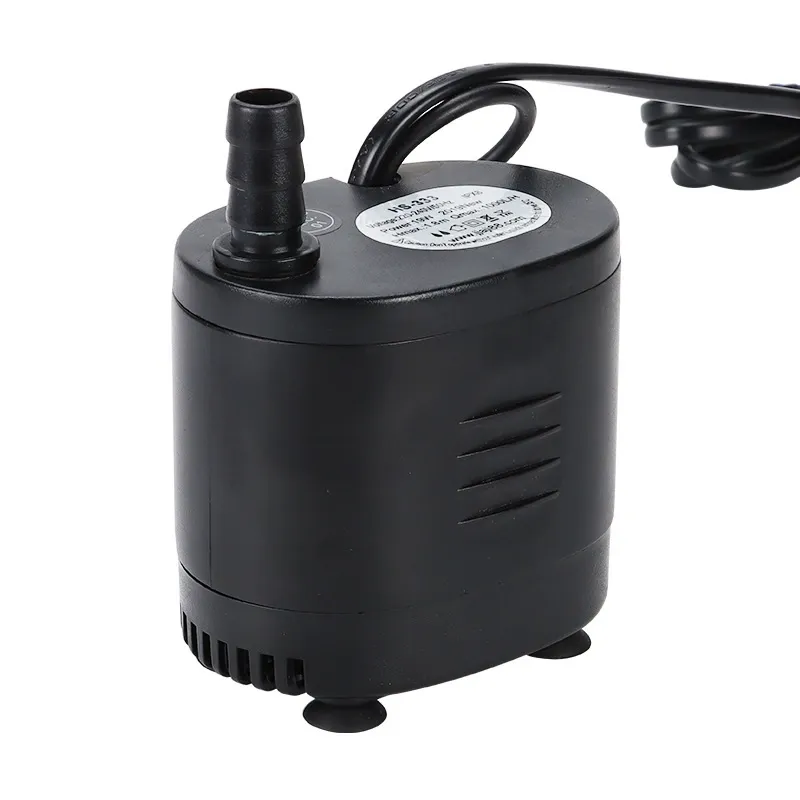

Direct replacement water pump for portable evaporative coolers. Compatible with threaded connection interfaces.

Voltage

110V / 60Hz

Power

15W

Max Head

2.5m

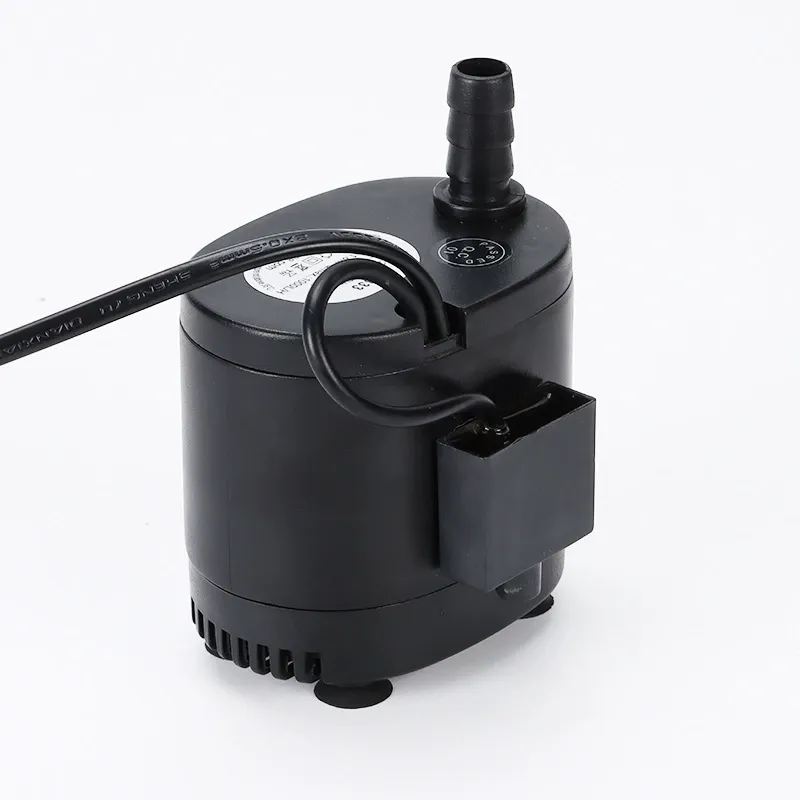

220V replacement water pump for evaporative coolers. Threaded interface for universal fitment.

Voltage

220V / 50Hz

Power

15W

Max Head

2.5m

Replacement O-ring and gasket set for leak-proof plumbing.

Material

Silicone / EPDM

Sizes

6mm - 20mm

Quantity

Assorted Set

110V solenoid valve for automatic water supply control in evaporative coolers.

Voltage

110V / 60Hz

Connection

1/4" Tube

Type

Normally Closed

Splash guard baffle for water sump area.

Material

ABS

Type

Snap-fit

Enclosed UV-C water-treatment module for evaporative cooler tanks and recirculation loops, configured to support microbial, algae, biofilm and odor control without exposing users to UV-C light.

UV-C Wavelength

254 nm, ozone-free lamp option

Installation

Enclosed tank or in-line chamber

Electrical Options

110–120 V / 220–240 V

Water distribution manifold header for multi-point water delivery.

Length

600mm

Outlets

6

Material

PVC

Replaceable water strainer screen for evaporative cooler water systems.

Mesh Size

40 mesh

Material

Stainless Steel / Nylon

Connection

Push-fit / Threaded

Replacement water tank sump for evaporative cooler water storage.

Capacity

15L

Material

PP / HDPE

Drain

1/2" Outlet

Protective mesh screen to prevent debris on cooling pads.

Mesh

40 mesh

Material

Nylon / Stainless Steel

Size

600 x 300mm

Durable cooling pad frame for secure pad mounting in evaporative coolers.

Material

Plastic / Metal

Compatible Pad Size

600 x 300 mm

High-performance evaporative cooling pad with cross-fluted design for maximum cooling efficiency.

Dimensions

600 x 300 x 50 mm

Material

Cellulose / Paper

Flute Angle

45/45 deg

Spray nozzle for evaporation side water distribution.

Spray Angle

150°

Flow

1.5 L/min

Material

PP

Overflow baffle to direct excess water safely away from the cooler.

Material

ABS

Type

Snap-fit

Water distribution bar for even water flow across cooling pad surfaces.

Length

600mm

Material

PVC

Hole Spacing

25mm

Anti-splash curtain to contain water within the evaporation section.

Material

PVC Sheet

Thickness

1mm

Size

600 x 400mm

Drift eliminator to prevent water droplet carryover in air stream.

Material

PVC

Profile

S-Curve

Size

600 x 300mm

Adjustable outlet louver for air flow direction control.

Size

400 x 200mm

Material

ABS

Adjustment

Manual Horizontal/Vertical

Replaceable bearing block for centrifugal fan shaft support.

Shaft Diameter

12mm

Type

Pillow Block

Bearing

UC201

Replacement volute housing for centrifugal blower assembly.

Material

Galvanized Steel

Wheel Size

250mm Dia

Outlet

Rectangular Flange

Forward-curved centrifugal fan wheel for blower replacement.

Diameter

250mm

Width

80mm

Material

Galvanized Steel

Replacement fan/blower motor for air circulation.

Voltage

110V/60Hz

Power

250W

RPM

900

Safety protection grille for evaporative cooler fans.

Diameter

400mm

Material

Steel Wire

Finish

Powder Coated

Air inlet ring for centrifugal fan/blower assembly.

Diameter

250mm

Material

Galvanized Steel

Profile

Bell-mouth

Power contactor relay for motor and pump switching.

Coil

110V AC

Contacts

30A / 3P

Aux

1NO+1NC

Universal replacement control board for evaporative cooler electronic systems.

Voltage

110V / 60Hz

Functions

Pump + Fan + Fill

Display

LED Indicator

Panel-mount fuse holder with 10A fuse for circuit protection.

Fuse Size

5x20mm

Rating

10A/250V

Mount

Panel Screw

Starting/running capacitor for evaporative cooler motors.

Capacitance

6 µF

Voltage

450V AC

Type

Motor Run Capacitor

Variable speed controller for evaporative cooler fan motors.

Max Load

750W

Voltage

110V-240V

Control

Rotary Knob

3-core power supply cable for cooler electrical connection.

Cores

3 x 1.0mm²

Length

1.5m

Rating

10A/250V

110V replacement fan/blower motor for evaporative coolers. B3 foot mount, 1400 RPM.

Voltage

110V / 60Hz

Power

550W

RPM

1400 rpm

220V 750W replacement motor for evaporative coolers. B5 flange mount, 1400 RPM.

Voltage

220V / 50Hz

Power

750W

RPM

1400 rpm

NTC thermistor temperature sensor for cooler monitoring.

Type

NTC 10KΩ

Range

-40 to 125°C

Cable

1m

12-position screw terminal block for wire termination.

Positions

12

Wire Size

14-22 AWG

Rating

15A/300V

Thermal overload protector for motor safety shutdown.

Trip Temp

120°C

Reset

Automatic

Rating

10A/250V

Float-type water level sensor switch for automatic fill control.

Type

Reed Switch + Magnetic Float

Output

NC / NO Selectable

Mounting

Tank Side Mount

Pre-assembled wiring harness for cooler electrical connections.

Wires

6-wire set

Terminals

Pre-crimped

Length

600mm

Rubber anti-vibration mounts for reducing fan and pump vibration.

Material

Natural Rubber

Thread Size

M6

Load Capacity

10 kg each

Replacement side panel for standard cabinet evaporative coolers.

Material

Galvanized Steel

Finish

Powder Coated

Thickness

0.8mm

Replacement caster wheel set for portable evaporative coolers.

Wheel Diameter

50mm

Material

Rubber / Nylon

Brake

Dual Locking

Universal fan mounting bracket for evaporative cooler fan/blower assembly.

Material

Galvanized Steel

Finish

Zinc Plated

Type

Universal L-Bracket

Assorted fasteners kit for cooler assembly and repair.

Material

Stainless Steel

Contents

M4/M5/M6 Assorted

Quantity

50 pcs per kit

Self-adhesive rubber sealing strip for cabinet doors and panels.

Material

EPDM Rubber

Profile

10x5mm

Length

5m roll

Adjustable leveling foot for cooler stability on uneven surfaces.

Thread

M8

Base

Rubber Pad

Adjustment

±15mm

Replacement service cover for maintenance access.

Material

Galvanized Steel

Finish

Powder Coated

Type

Hinged with Latch

Complete maintenance cleaning kit for evaporative cooler servicing.

Contents

Cleaner + Brushes + Cloths

Frequency

Quarterly Use

Standard replacement cooling pad — the most frequent wear part replacement.

Dimensions

600 x 300 x 50 mm

Material

Cellulose / Paper

Flute Angle

45/45 deg

Common replacement drain plug pack for routine maintenance.

Thread

1/2" NPT

Pack

5 pcs

Material

PP + O-ring

Replaceable filter element for evaporative cooler air intake.

Material

Non-woven Fabric

Thickness

10mm

Washable

Yes

Replacement panel sealing strip for water-tight integrity.

Material

EPDM Rubber

Length

3m roll
